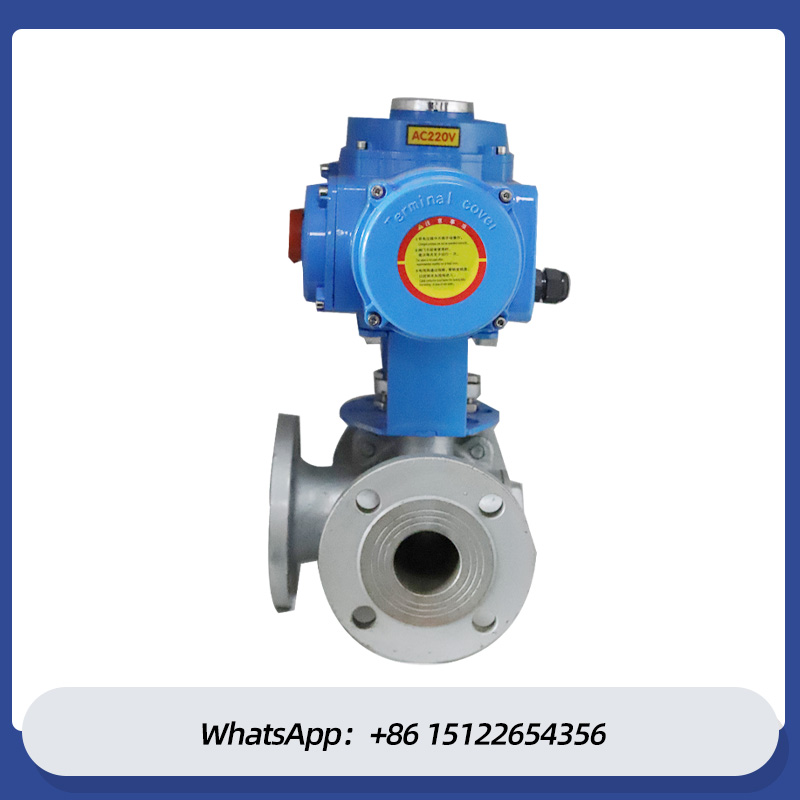

3-way motorized valve price / electric actuators three-way valves / 3-way water valve
1、 Structure compactness , opens and close rapidly , one flows unblockedlying , fluid obstruction is small .
2、 It is of good performance to seal : Utilize flat material polytetrafluoroethylene ( PTFE ) elasticity out of shape to realize not leaking sealing valve on four sides .
3、 A valve is multi - purpose : Can have been used as the entry and let out while taking the post as the mouth once , the three direct links can already be made into the L type open mouth , can make T type open mouth .
4、 It is convenient to maintain : After the system releases pressure , needing to pull down the whole valve body can carry on checking and maintenance .
5、 Suffused with suitable for supplying watering , Hua Shi , metallurgy , mine , light textile , energy , papermaking , food , steel pipeline system is it go on switch over and distributary in the medium or mix fluids to flow into to medium .
TECHNICAL PARAMETER
|
Optional function of electric actuator |
Switching type, regulating type, intelligent body type |
|
Voltage |
AC220V,AC110V,AC380,DC12V,DC24V,DC110V |
|
Nominal diameter |
DN15mm~DN200mm |
|
Nominal pressure |
PN1.0Mpa~PN1.6Mpa |
|
Applicable temperature |
PTFE: -30~+120℃ PPL:≤350℃ Metal seal :≤ 450℃ |
|
Connection mode |
Flange type |
|
Valve body material |
304, 316, 316L |
|
Valve disc material |
304、316、316L |
|
Valve seat lining |
Cast steel, 304, 316, 316L |
|
Applicable medium |
Water, petroleum, acids, viscous fluids, slurry media, etc |

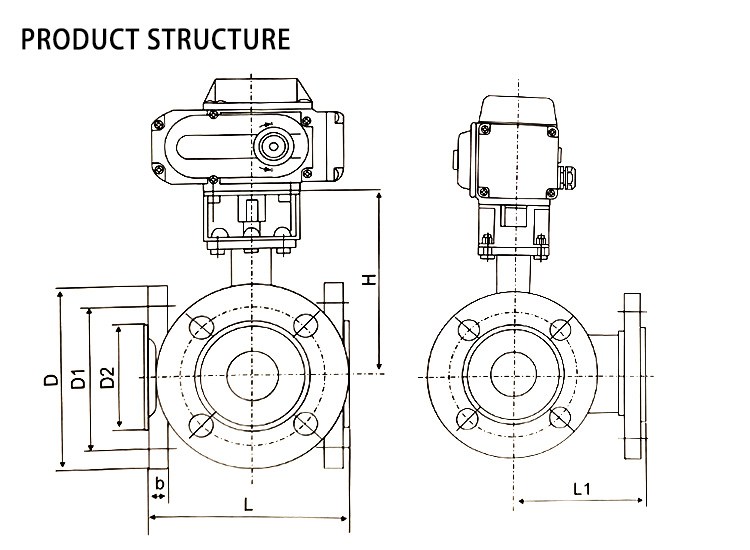

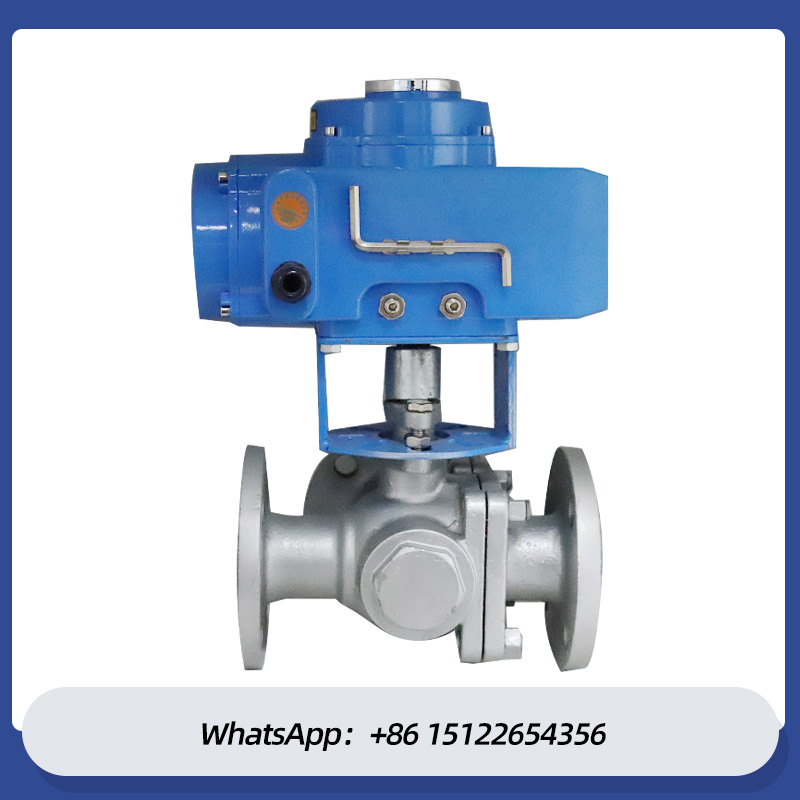

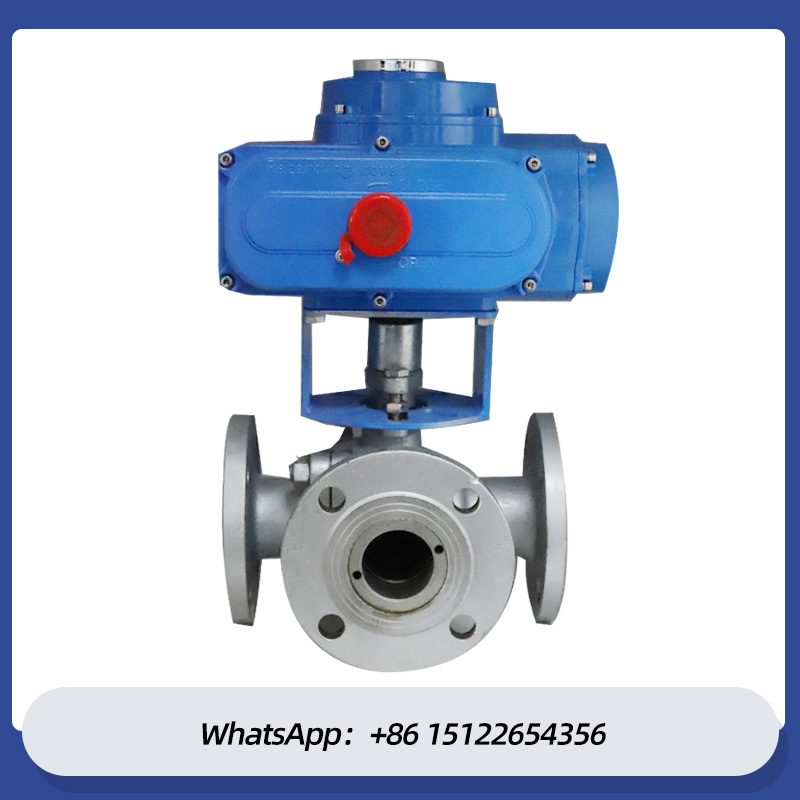

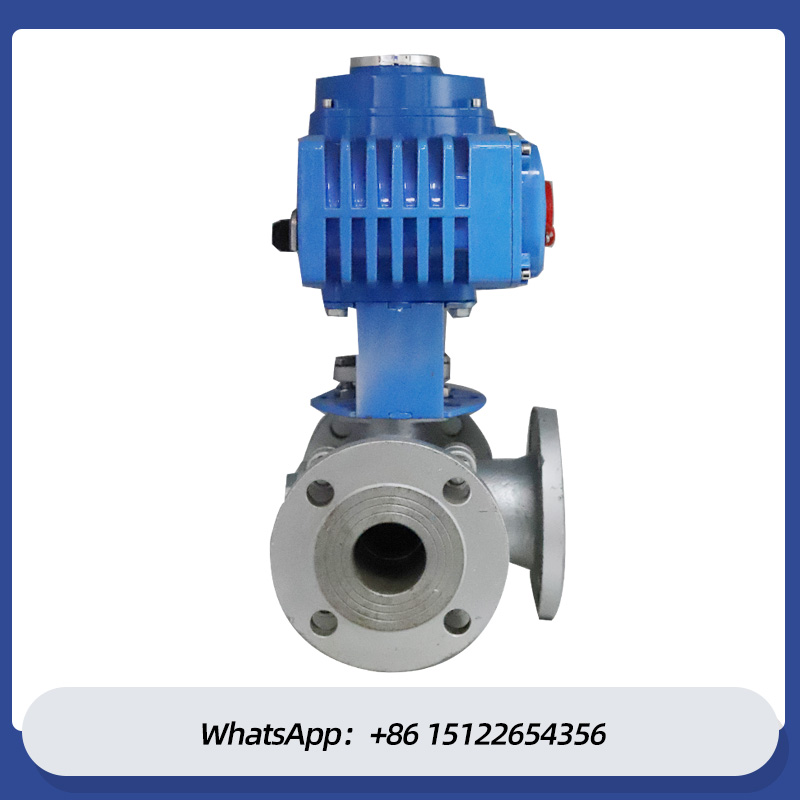

The motorized three-way valve is composed of a valve body, a spool and an actuator. The valve body has an internal flow
channel, and the spool can rotate in the valve body to control the shunt, confluence and commutation of the medium by

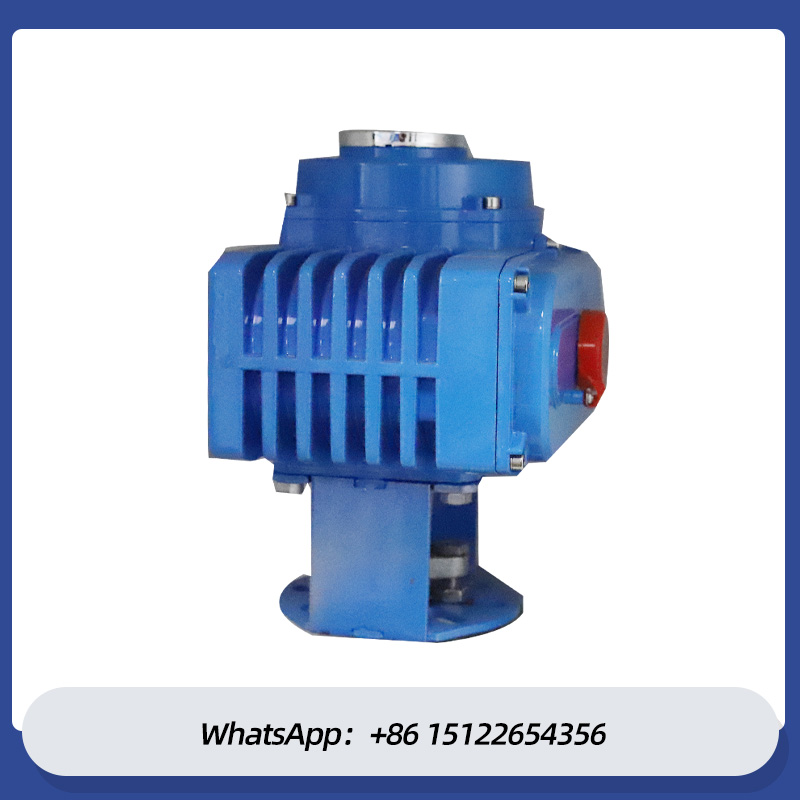

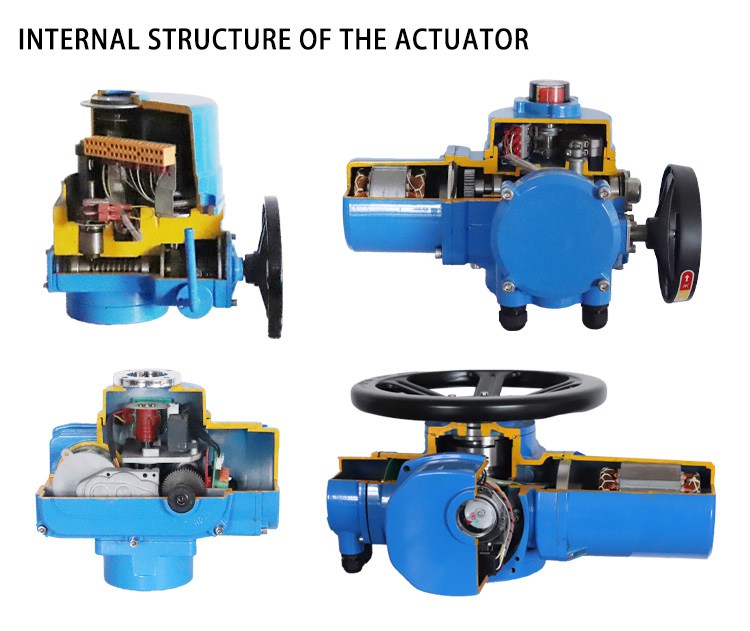

changing the channel position of the flow channel. The actuator uses an motorized actuator to control the movement
of the valve core through motorized drive to achieve remote and automatic flow regulation.

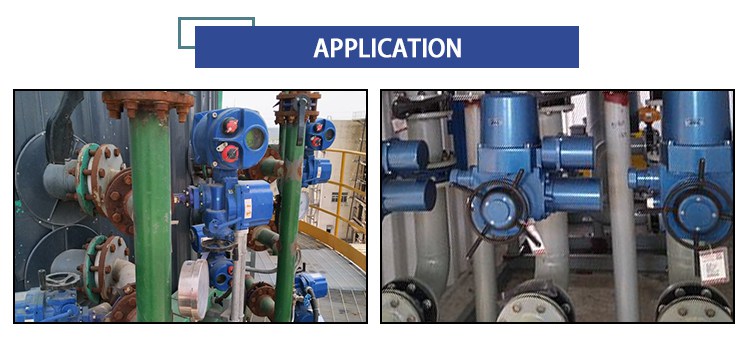

Motorized three-way valves are widely used. In the industrial field, it can be used for mixing, dispensing and switching of
different fluids. For example, when two fluids with different temperatures or different compositions need to be mixed, the
flow of the two inlet fluids can be controlled by an motorized three-way valve to achieve mixing. In the water supply system,
the electric three-way valve can adjust the flow of cold water and hot water to achieve temperature control. In addition, the
motorized three-way valve can also be used to control the shunt system or close one of the shunt pipes.

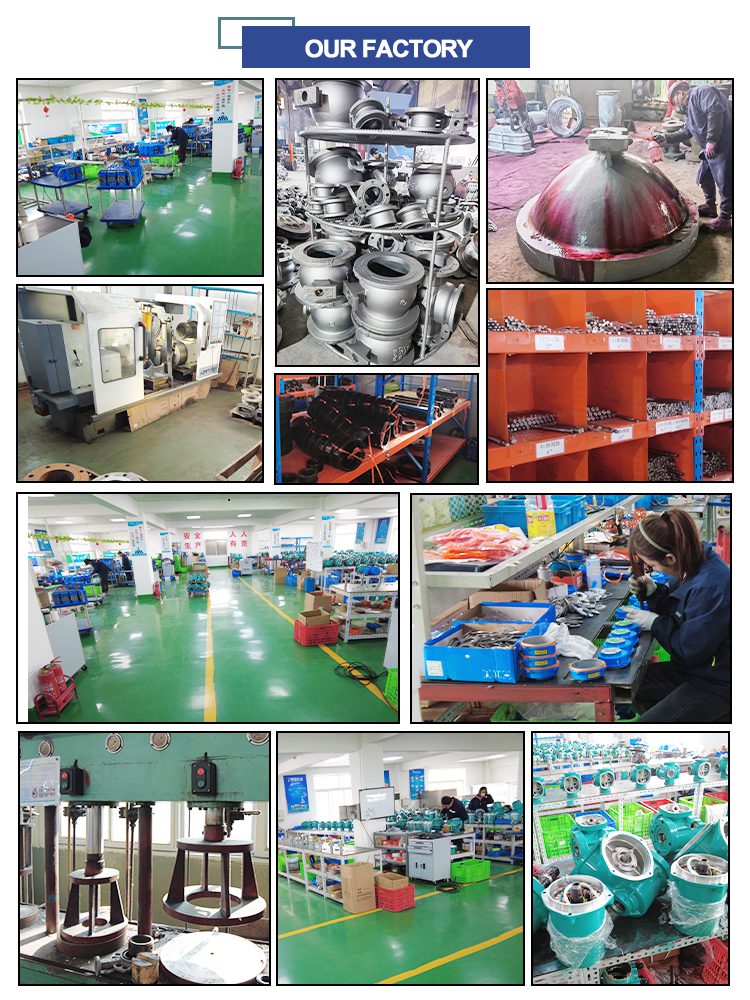

10years Team of engerneer and high level techniacal electric valve actuator manufacturers

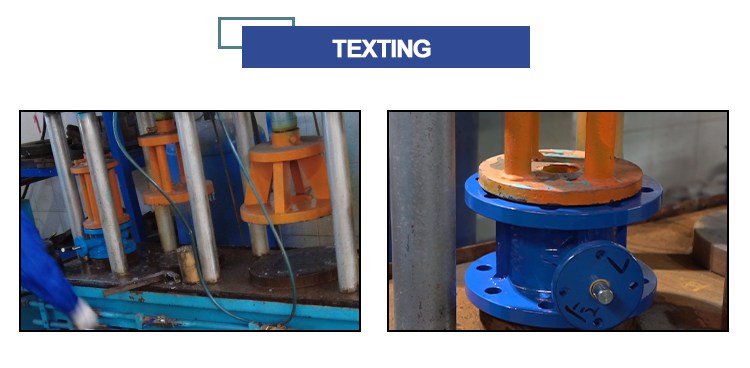

Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg shell pressure test,
pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure test: test pressure 17.6 kg; Hold the pressure for 2 minutes
